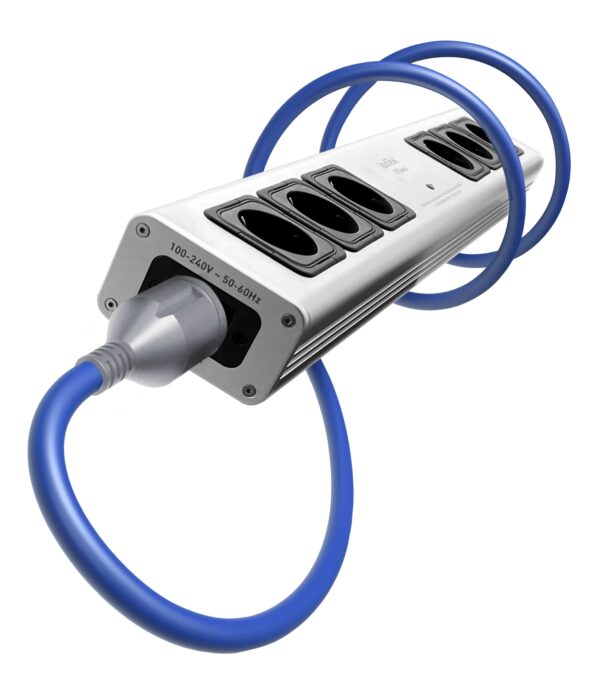

The All New V5 Sirius

The new V5 Sirius is an ultra-high performance 16A power bar, harnessing IsoTek’s latest mains power cleaning technology, which both protects and improves your audio system’s performance. If more power output sockets are required a unique IsoTek ‘System Link’ connector is provided, this allows you to connect multiple IsoTek units together whilst maintaining star-earth.

Features

• Suitable for all audio, AV, or network based systems
• RFI reduction up to 60dB
• Central clean power network removes Common and Differential Mode mains noise
• 6 independent outlets stop Differential Mode cross contamination (16A)
• 54,000A instantaneous protection
• Fully star-earthed network
• Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
• Easy reset fusing system
• Wall mounting bracket kit included
• System Link outlet for extending the outlets and maintaining a starred earth reference
• Supplied with IsoTek EVO3 PREMIER POWER CABLE

A New Standard for Power Cleaning Boards

Each output socket of the V5 Sirius is individually wired, with no two being connected, each referencing back to the central power cleaning network, ideal for the reduction and elimination of Differential Mode mains noise cross contamination. IsoTek’s unique ‘System Link’ additional output connector allows you to connect multiple IsoTek units together. The V5 Sirius features a greatly enhanced high power shunt filter network delivering -23dB mains noise reduction at 10 kHz, -40dB at 100 kHz and -60dB at 1 MHz. A unique high grade, high amperage mains noise choke based system is combined with a high frequency delta filter network to eliminate both Common Mode and Differential Mode mains noise across a wide frequency range. V5 Sirius features KERP (Kirchoff’s Equal Resistance Path) which ensures equal resistance and equal power delivery to all outlets. The internal wiring is unique and specifically designed to offer the highest standards of power delivery. Pure 6n oxygen-free copper conductor strands with silver-plating are designed to offer low resistance and high amperage. An FEP dielectric is then used to protect the conductors offering a low dielectric constance.

Instantaneous Protection

54,000 Amps instantaneous yet transient protection enhances sound quality for connected components as well as protecting them from dangerous power surges and voltage spikes. The easy resettable fusing system offers a substantial upgrade over a standard ordinary fuse due to increased contact area. PLEASE NOTE: A special, easy to install wall bracket system is provided which allows you to mount the V5 Sirius discretely behind your audio system if required.
