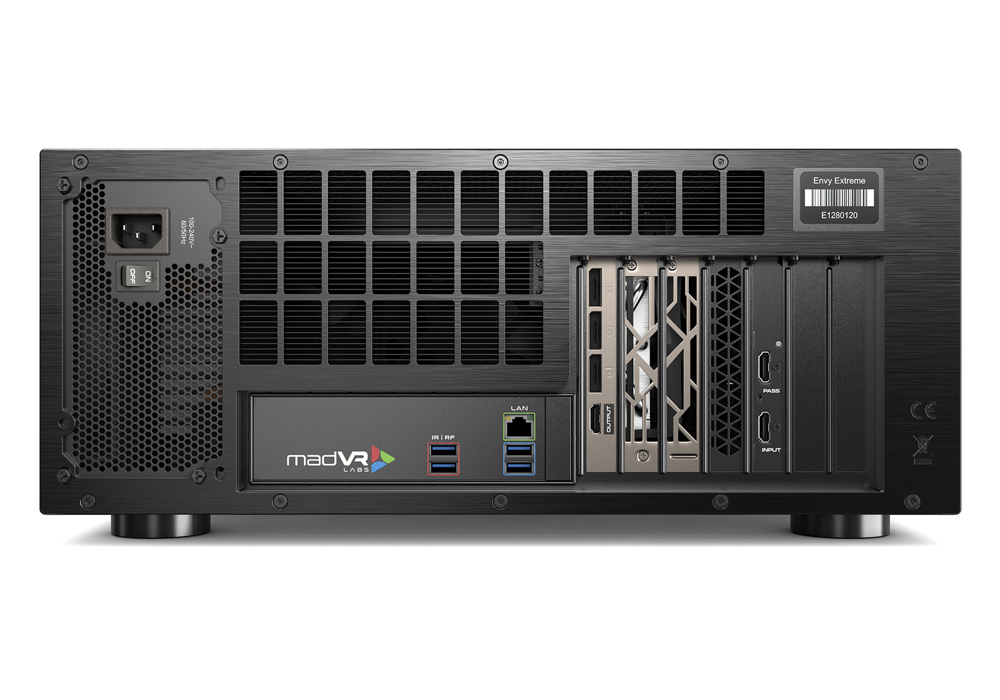

Envy Extreme Mk2

Key Features Envy Extreme Mk2: Dynamic HDR Tone Mapping Leading the pack in HDR dynamic tone mapping, Envy Pro Extreme employs our patent-pending DTM 2.0 technology, analysing every frame in real-time for pixel-perfect optimization. Capable of handling half a billion pixels per second at 4K60, our exclusive Highlight Recovery, Contrast Recovery, and Shadow Detail Recovery serve up an image so breathtaking, it’s practically addictive. With Envy Pro Extreme, viewing HDR movies and shows at home just got a cinematic upgrade. Auto Aspect Ratio and Geometry Control Say goodbye to black bars with Envy Pro Extreme’s unrivalled auto aspect ratio (AR) control that instantaneously adjusts the image to perfectly fit your screen. This functionality remains unfazed by the screen’s AR or the movie’s AR. Advanced geometry correction further boosts your viewing experience, effectively tackling lens barrel distortion, curved screens, and complex architectural installations. Superior 4K & 8K Upscaling & Sharpening Unleashing the power of proprietary machine learning algorithms, Envy Pro Extreme delivers unsurpassed upscaling for 4K, 5K, and 8K resolutions*, alongside exceptional chroma upscaling (4:2:0->4:4:4) and anamorphic stretch. It can even rectify certain chroma upscaling defects in source players with its superior chroma upscaling capabilities. High-precision Calibrations Supporting 256-point 3D LUTs and 4,096 point 1D LUTs, Envy Pro Extreme enables astonishingly accurate calibrations without any loss of measurement data. By integrating with calibration products such as ColourSpace and Calman, it offers a mind-boggling 16.7 million points of accuracy. Advanced Image Enhancements Envy Pro Extreme equips your home cinema with high-quality algorithms to eliminate compression artifacts, mosquito noise, and 8-bit banding artifacts. With options to add or remove grain, sharpen edges, remove ringing and more, you control your perfect viewing experience. Subtitle Handling & User-friendly Profiles Never miss a word with Envy Pro Extreme’s subtitle handling that dynamically resizes your image to accommodate subtitles. Coupled with a potent yet easy-to-use profile system, you gain unparalleled control over your settings. 8K and HDMI 2.1 Support The first of its kind, Envy Pro Extreme supports 8K HDMI 2.1 output, boasting full 48 Gbps HDCP 2.3 support. This forward-thinking hardware platform promises years of cutting-edge home cinema enjoyment. Non-Linear Stretch (NLS+) With the innovative NLS+, eliminate annoying black bars when watching 16:9 content on a 2.35 screen. This unique feature combines horizontal expansion with vertical compression, yielding a more natural-looking image. Easy to Install and Operate Enjoy a hassle-free setup process that’s done in five minutes flat. If you need support, your dealer can remotely connect to your Envy Pro Extreme, viewing its video output in real-time and providing assistance as if they were right there with you. Discover the future of home cinema with the MadVR – Envy Pro Extreme. Now available at AV Toys

Main Features & Specifications

• Design: Advanced Video Processor for use with Projectors & TVs
• General CPU Processing Power (cores / threads): 6 / 12
• General Graphics Processing Power (GFLOPS): 43,000
• Specialized AI Graphics Processing Power (Tensor core GFLOPS): 172,000 – 344,000
• 1 x HDMI 2.0b HDCP 2.2 18.0 Gbps input port
• 1 x HDMI 2.1 HDCP 2.3 48.0 Gbps output port
• 1 x HDMI 2.0b HDCP 2.2 18.0 Gbps zero-latency pass-thru
• Optional (paid) hardware upgrades to keep Envy up-to-date in the future
• 96bit per pixel floating point using 4:4:4 for all algorithms
• Extreme quality dithering algorithm
• Smooth motion algorithm for displays with no (or poor) 24 FPS support
• Automatic optimization of algorithm quality levels
• 3D LUT calibration using CalMAN, LightSpace, DisplayCAL, and more
• Massive 3D and 1D LUTs (3D LUT 65^3 or 256^3, 1D front/back LUTs 4,096 points, 12 bit precision)
• Software updates easily installable via Envy menu
• Remote technical assistance from authorized dealers (“madAssist”)
• Highly intuitive user interface, true plug-and-play installation in minutes
• IP control (Crestron, Control4, Savant, RTI, others)
• Frame packed 1080p24 3D support
• HDR Dynamic Tone Mapping (DTM)
  • Frame by frame DTM, no metadata required
  • Advanced dual-algorithm scene change detection
  • Contrast Recovery (off, low, medium, high)
  • Shadow Detail Recovery (off, low, medium, high, very high, insane)
  • Highlight Recovery up to 4K24 (off, low, medium, high, very high, insane)
  • Highlight Recovery at 4K60 (off, low, medium, high, very high, insane)
  • DTM with 1080p60 HDR
  • DTM with 4K24 HDR
  • DTM with 4K60 HDR
• Scaling
  • AI-based ring-free & artifact-free chroma upscaling
  • AI-based ring-free & artifact-free image upscaling
  • Upscaling can be switched to either optimize high or low quality sources
  • Upscaling to 4K24
  • Upscaling to 4K60
  • Upscaling to 5K24 and 8K24
  • Upscaling to 5K50/60, and any custom resolution up to 8K60
  • Sharp & ring-free high quality downscaling
• Aspect Ratios & Front Projection
  • Automatic aspect ratio and black bar detection
  • Automatic IMAX aspect ratio changes
  • Masking for projection screens
  • Image shift for CIW projection
  • Advanced convergence correction
  • Automatic activation of JVC & Sony lens memories (via IP control)
  • Non-linear Stretch (NLS+) fits any aspect ratio content to any aspect ratio screen
  • Advanced geometry correction (fix a-lens barrel distortion, fit curved screens, off-axis PJ installs)
  • AI-based anamorphic stretch upscaling for 1080p projectors
  • AI-based anamorphic stretch upscaling for 4K projectors
  • AI-based anamorphic stretch upscaling for 5K/8K projectors
• Artifact Reduction & Edge/Texture Enhancement
  • AI-based algorithm to reduce compression artifacts
  • Algorithm to reduce banding artifacts
  • Edge enhancement (aka sharpening)
  • Texture detail enhancement
• Planned Future Algorithms (added via software updates)
  • MotionAI™ (per-pixel, AI based motion interpolation, currently in private beta)
  • AI-based motion compensated video deinterlacing
  • AI-based motion compensated multi frame noise/grain reduction
  • AI-based grain agnostic sharpening
  • AI-based 4K HDR dynamic tone mapping processing (DTM gen3)
  • Additional undisclosed AI-based algorithms and features
• Supported Max Input Formats
  • 60 Hz: 4096×2160 in 12 bit 4:2:0, 4:2:2 or 8 bit 4:4:4, RGB
  • 30 Hz: 4096×2160 in 12 bit 4:2:0, 4:2:2 or 12 bit 4:4:4, RGB
• Supported Max Output Resolutions
  • All up to 4K120 & 8K60
• Power Consumption: 60W – 400W
• AC Power Input: 110V – 240V
• AC Power Frequency: 50Hz – 60Hz
• Rack Mount Ears & Screws included
• Premium Remote Control Included: Dual band IR + RF, Aluminium face plate, Backlit buttons
• Dimensions (WxHxD): 440 x 192 x 443mm (4U Rack Height)
• Weight: 14.5kg
• Manufacturer’s Warranty: 5 Years

Note: Features & Specifications Subject To Change Without Notice. E&OE.
