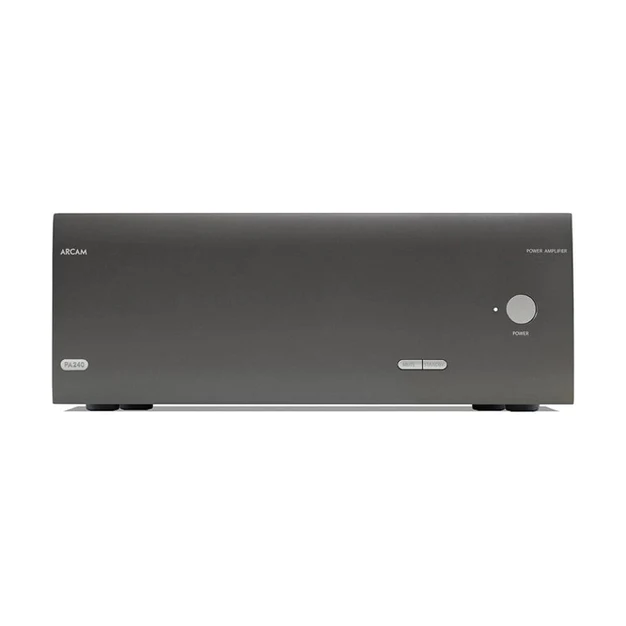

ARCAM PA240 POWER AMPLIFIER

Let your audio journey transcend boundaries with the Arcam PA240 Power Amplifier, a beacon of British engineering brilliance brought to you by one of the UK’s most prestigious audio companies. Drawing from Arcam’s wealth of experience and meticulously curated design aesthetics, the PA240 elevates your listening experience to unprecedented heights. Outfitted with a 2-channel power source that yields an impressive 225W of Class G amplification, this powerhouse defies limitations with an astounding bridged mode that ramps up to 790W. Surprisingly efficient and unfailingly reliable, the PA240 embraces the exceptional power of Class G amplification, with the added excellence of 50W of Class A operation.

FEATURES:

1. 2 Channel Power Amplifier: The Arcam PA240 Power Amplifier is equipped with a 2-channel power source that delivers a robust 225W of Class G amplification under normal operation.
2. Class G amplification with Class A operation: The PA240 outputs a blistering 790W in bridged mode while offering the precision and tonal purity of 50W Class A operation. Combine the immersive sound experience of Class G with the superior detail and transparency of Class A and you have a powerhouse that delivers the best of both world.
3. Multiple Operation Modes: The PA240 offers versatile operation modes including Stereo, Dual Mono, or Bridged, allowing you to customize your sound experience to your specific needs.

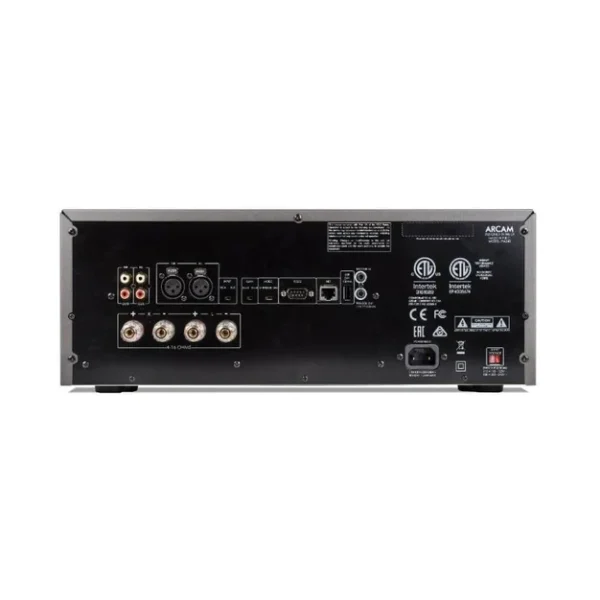

4. Switchable Inputs: The PA240 offers switchable RCA or balanced XLR inputs for greater connection flexibility.
5. Toroidal Transformer: This advanced transformer design ensures the negotiated power supply is kept consistent under varied loads, reducing harmonic distortion for cleaner sound.
6. Ethernet and RS232 control: This feature allows for sophisticated integration within a custom installation environment.
7. Acoustically Damped Chassis: Ensures minimal distortion and optimal sound clarity.

BENEFITS:

1. Astounding Power: With a heightened power output, the PA240 transcends traditional performance boundaries, delivering a more dynamic and invigorating audio spectacle.
2. Unrivalled Sound Quality: The unique pairing of Class G and Class A operation ensures an unrivalled soundstage, smooth highs, detailed midrange, and deep punchy bass that effortlessly replicates the original sound characteristic.
3. Versatility: Whether you’re powering loudspeakers or engaged in discreet custom installation, the PA240’s flexible modes and switchable inputs provide versatile operation to fit any setting.
4. Reliable and Consistent Performance: The integrated toroidal transformer guarantees a stable power supply that accurately reproduces every musical nuance, regardless of the load level.
5. Minimized Distortion: Through acoustically damped chassis and paralleled transistor output stages, the PA240 significantly reduces audio distortion delivering enhanced clarity and realism.
6. High-grade Components: Made with best-in-class components, the PA240 follows Arcam’s tradition of impeccable product design and build quality, promising years of uncompromised listening pleasure.
7. Advanced Control Options: The ethermet and RS232 control support syncs seamlessly with state-of-the-art custom installations, offering more comprehensive and intuitive control on your audio system.

SPECIFICATIONS:

Specification	Description
Product Line	Arcam – HDA Range
Model	PA240 – Power Amplifier
Number of Channels	2 Channels
Amplification Type	Class G Amplification
Switchable Operation Modes	Stereo, Dual Mono, or Bridged
Connectivity	Ethernet, RS232
Input Type	Switchable RCA or balanced XLR inputs
Power Output	2 x 225W (8ohm, 20Hz-20kHz, 0.2% THD); 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
Harmonic Distortion	0.001% (80% power, 8Ω at 1kHz)
Input Sensitivity	200W / 8Ω: (RCA TYPE)1.15V RMS, (XLR TYPE) 2.3V RMS
Signal/Noise Ratio	(A-wtd) 50W / 8Ω: 110dB
Input Impedance	10kΩ
Frequency Response	20 – 20kHz +/-0.05dB
Mains Voltage	110–120V or 220–240V, 50–60Hz
Power Consumption (maximum)	1.5kW
Power Consumption (idle, typical)	90W
Power Consumption (standby)	<0.5W
Dimensions	433 x 425 x 177mm
Net Weight	18kg
Packed Weight	19.7kg

In conclusion, the Arcam PA240 Power Amplifier is the epitome of understated excellence. It’s a phenomenal blend of robust power, unparalleled clarity, and state-of-the-art flexibility that sets it lightyears ahead of the rest. Its top-tier performance, courtesy of Class G amplification and multi-operation modes, guarantees an immersive and profound connection to your music, redefining the boundaries of traditional audio amplification. With the PA240 as your trusted companion, enjoy the authority to control, manipulate, and craft your experience, only limited by your imagination. This isn’t merely a product – it’s an unforgettable journey towards sonic vitality powered by Arcam’s devotion to sublime craftsmanship and impeccable quality. Take the leap towards genuine prestige and join the premium league of sound enthusiasts today. Don’t just hear your music, live it. Discover the depths of auditory bliss with Arcam at The Audio Tailor, your go-to destination for world-class Hi-Fi audio. Reach us through phone, email, in-store visit in Brisbane, or via our contact URL – because you deserve nothing but the very best in life. Let us help you elevate your sound, choose Arcam PA240 today.

Specification	Description
Product Line	Arcam – HDA Range
Model	PA240 – Power Amplifier
Number of Channels	2 Channels
Amplification Type	Class G Amplification
Switchable Operation Modes	Stereo, Dual Mono, or Bridged
Connectivity	Ethernet, RS232
Input Type	Switchable RCA or balanced XLR inputs
Power Output	2 x 225W (8ohm, 20Hz-20kHz, 0.2% THD); 1 x 790W Class G bridged mode (8ohm, 20Hz-20kHz, 0.2% THD)
Harmonic Distortion	0.001% (80% power, 8Ω at 1kHz)
Input Sensitivity	200W / 8Ω: (RCA TYPE)1.15V RMS, (XLR TYPE) 2.3V RMS
Signal/Noise Ratio	(A-wtd) 50W / 8Ω: 110dB
Input Impedance	10kΩ
Frequency Response	20 – 20kHz +/-0.05dB
Mains Voltage	110–120V or 220–240V, 50–60Hz
Power Consumption (maximum)	1.5kW
Power Consumption (idle, typical)	90W
Power Consumption (standby)	<0.5W
Dimensions	433 x 425 x 177mm
Net Weight	18kg
Packed Weight	19.7kg
